ENGINEERED
EXPANSION JOINTS FOR
FLUID CATALYTIC CRACKING UNIT (FCCU)

Belman has successfully engineered and manufactured four Expansion Joints for a Spanish oil refinery. They will be installed in the refinery’s fluid catalytic cracking unit (FCCU).



Design

Belman engineered the Expansion Joints for fluid catalytic cracking (FCCU) in accordance with the client’s specifications, KBR specifications and the ASME B31.3:2010 design code. The solution required two hinged expansion joints and two gimbal expansion joints. Belman supported the client with expert advice from the early engineering stage and also through the preparation of a comprehensive design report. This report contained more than sixty pages, including stress analysis of the external hardware, thermal calculation, bellows calculations and more. In addition, Belman also attended the kick off meetings at the client premises.

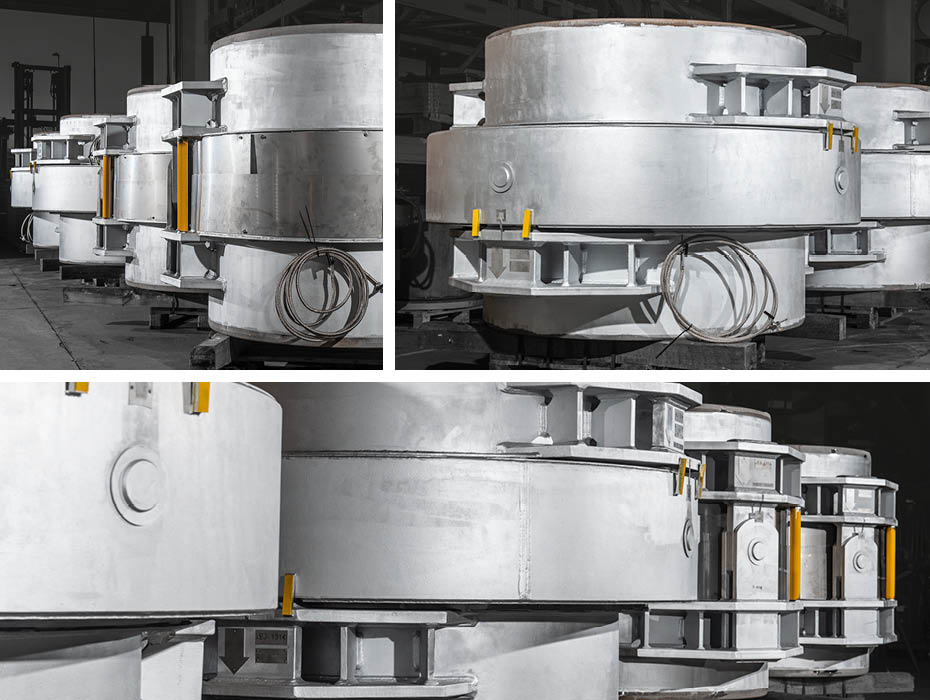

The Expansion Joints for fluid catalytic cracking (FCCU) were designed as two-ply testable bellows with additional stainless steel hoses to be connected to the test port. This ensured that the maintenance during service would be easier to perform. Furthermore, in accordance with the specification a special zinc coating system was used.



Client benefits of working with Belman

The Engineered Expansion Joints for fluid catalytic cracking (FCCU) ensured the following benefits:

  • Excellent support from the early engineering stage
  • Compliance with KBR specifications
  • Simulations in Rohr2 and FEA
  • Competitive pricing
  • Monthly progress reports
  • Detailed drawings – as opposed to that available from competing suppliers



Experienced in Expansion Joints for fluid catalytic cracking unit (FCCU)

Belman is highly experienced in the engineering and manufacturing of Expansion Joints for fluid catalytic cracking unit (FCCU) and other critical applications in a variety of plants. Upon request we can send reference lists for FCC expansion joints, refractory lined expansion joints for FCC and other industries. This also includes brick lined expansion joints. Exceptional Belman engineered Expansion Joints for fluid catalytic cracking unit (FCCU) include a 30 tonne customized Expansion Joint and 3 Expansion Joints in various designs with a lead time reduced to 12 weeks.



Design parameters of the Expansion Joints for fluid catalytic cracking unit (FCCU)

The supplied Expansion Joints for fluid catalytic cracking unit (FCCU) have the following design parameters:

Type: Hinged Expansion Joint • Quantity: 2 pcs. • Dimension: DN 1400 • Length: 1350 mm • Medium: Flue gas • Design temperature: 982°C • Design pressure: 3,65 barG • AN: +/-1° • Bellows: Inconel 625 LCF • Pipe end: SA-516 gr. 70 • Inner sleeves: 1.4948 • Design code: ASME B31.3:2010 • Specifications: KBR

Type: Gimbal Expansion Joint • Quantity: 2 pcs. • Dimension: DN 1400 • Length: 1350 mm • Medium: Flue gas • Design temperature: 982°C • Design pressure: 3,65 barG • AN: +/-1° • Bellows: Inconel 625 LCF • Pipe end: SA-516 gr. 70 • Inner sleeves: 1.4948 • Design code: ASME B31.3:2010 • Specifications: KBR
