HIGH-TEMPERATURE BELLOWS FOR
HOT BED ASH MEDIA
Power Plant
Asia
EJMA

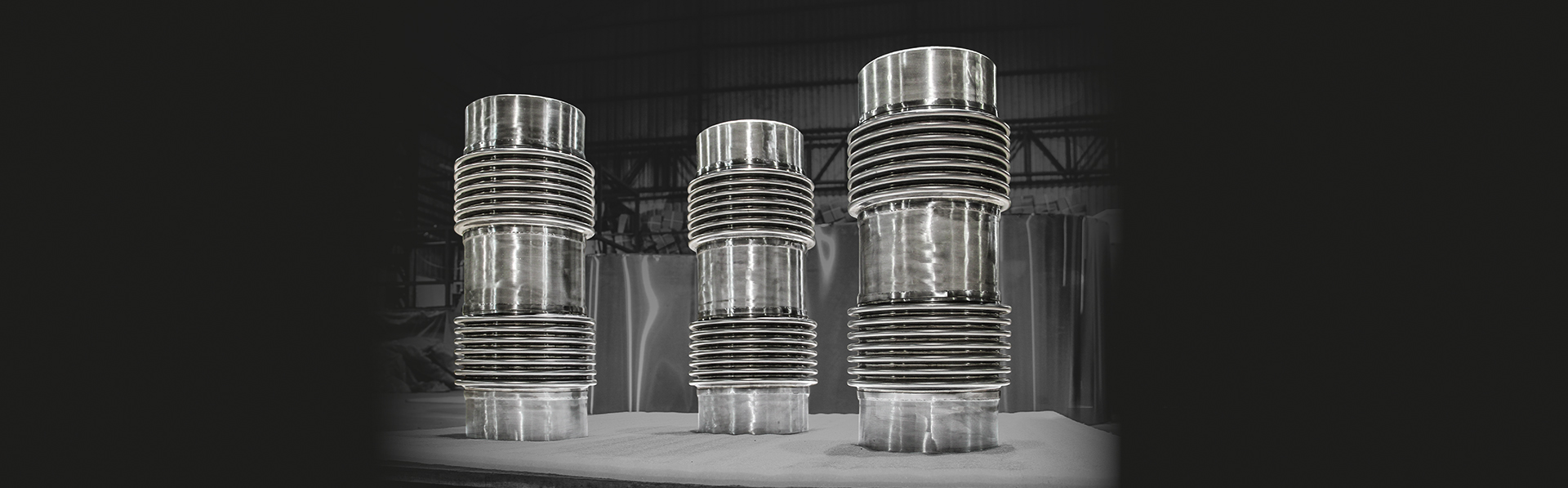

Belman Flexibles India has designed, manufactured and supplied three High-Temperature Expansion Bellows that are designed for hot bed ash media.
CLIENT ISSUE
The client contacted Belman Flexibles India as they were need for some special Expansion Bellows able to absorb movements in their pipeline with the working temperatures of 1000 degree Celsius.
BELMAN FLEXIBLES INDIA SOLUTION
High Temperature Expansion Bellows designed for Hot Bed Ash media

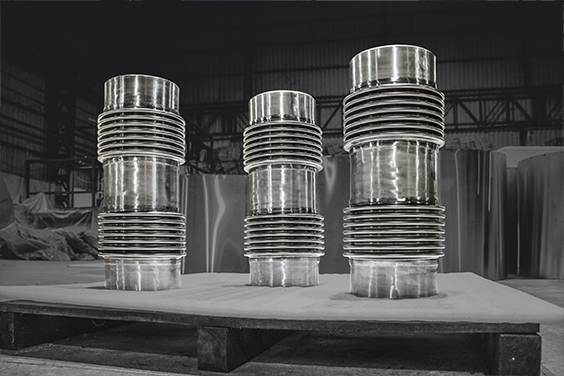

With the given project parameters, Belman Flexibles India designed and manufactured three Universal Expansion Bellows to accommodate the axial and lateral movements of the pipeline in combination. These bellows are specially designed for high temperature, which is 1000 Degree Celsius as the media is hot bed ash. The Bellows are made from SS310, which is a heat resistant stainless steel grade that is very good for use in very high temperature environments.
Belman Flexibles India – Expert in customised Expansion Bellow designs for high temperatures
At Belman Flexibles India, we are highly experienced in Expansion Joint design for critical applications having high demands such as high temperature, high pressure or various other demanding parameters that requires exceptional engineering skills and knowledge in the entire process from development, design to production and delivery.
DESIGN FEATURES
The Design parameters of the High Temperature Expansion Bellows designed for a Hot Bed Ash media:
Type: Universal Expansion Bellows • Quantity: 3 pcs. • Dimension: 200 NB • Built-in length: 600 mm • Design temperature: 1000°C • Design pressure: 2 barG • Media: Hot Bed Ash• AX: +/-25 mm • LA: +/-15 mm • Bellows: 0.5 mm*2 Ply SS 310
CLIENT BENEFIT
- Expansion Joints from a manufacturer experienced in designs for high-temperature applications
- Custom designed according to client requirements and operating specifications
- Quality ensured, cost effective Expansion Joint solution
TECHNICAL information
- Technical information on Universal Expansion Joints in the Expansion Joint Catalogue on pages 33
