BEST-IN-CLASS

HEATCOMP
FOR HEATING & VENTILATION

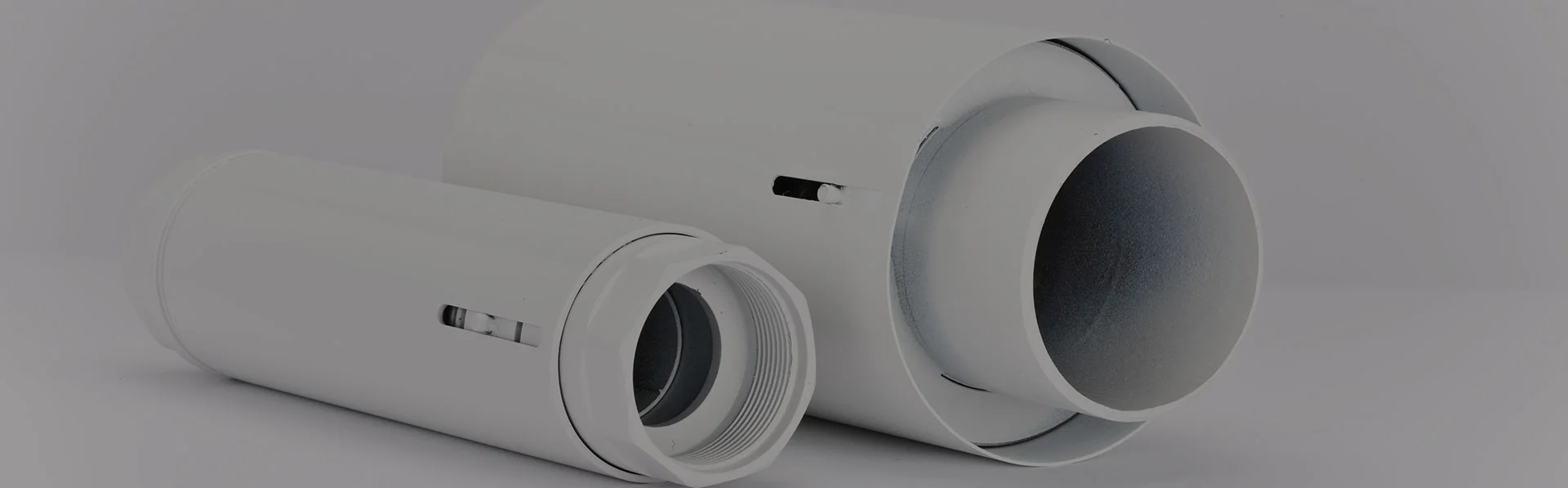

HeatComp is a self-guided Axial Expansion Joint with threaded ends specially constructed for heating installations and ventilation systems.
The Expansion Joint is supplied with white painted surfaces that gives a delicate open installation.

Design range and scope of supply for HeatComp

Belman HeatComp can be designed within the range:

Dimensions

DIMENSIONS:
BSP ends: DN 15-50
Welding ends: DN 15-100

Pressure

PRESSURE:
Pressure up to
16 Barg / 232 psi

Temperature

TEMPERATURE:
Temperatures up to
120°C

Materials_bellow_Symbol

MATERIALS:

Bellow: AISI 321, Inner sleeve: AISI 304, Connections: S235, Outer cover: S235

Test and Quality Control

TESTS:

Visual test, pressure test
or as per
client specifications

Test and Quality Control

CONNECTION ENDS:

BSP threads / Welding Ends

HEATCOMP

TECHNICAL DESCRIPTION

APPLICATIONS

Heat- and ventilation systems, water pipes etc. in large buildings, hospitals and similar constructions. HeatComp can also be used for pipe systems with domestic water. However, it cannot be used for drinking water as it is not VA approved (approval for water supply and drainage systems).

CONSTRUCTION

HeatComp is supplied with white painted surfaces, and gives a delicate open installation. HeatComp is protected against outer damages, and is easily mounted with a wrench. Torsion should be avoided.

HeatComp - Belman

USE AND INSTALLATION

At 70/90°C heating, one HeatComp per pipe length is sufficient to absorb movement of 30 metres of pipe in carbon steel. This equals a 10 floor building.

ADVANTAGES

What are the advantages of using HeatComp?

  • Solid construction, simple installa-
    tion
  • Absorbs movements in heating
    systems
  • Self-guided with motion limiters
  • Movement: 50 mm (+15/-35 mm)
  • No pressure loss
  • Supplied ready to use
