TEE TYPE PRESSURE BALANCED
EXPANSION JOINT
DESIGNED FOR A POWER PLANT
Power plant
India
EJMA

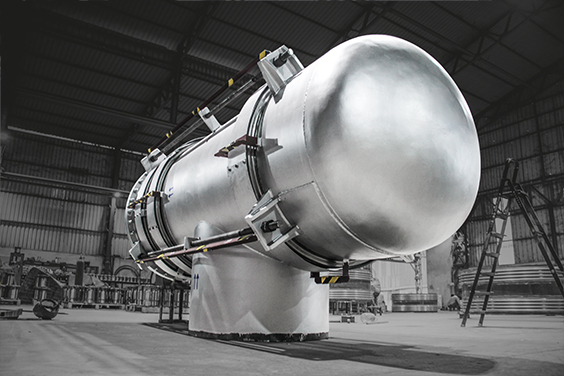

Belman Flexibles India engineered and manufactured a special Pressure Balanced Expansion Joint for installation in the Air-Cooled Condenser (ACC) in a power plant in India.
CLIENT ISSUE
The client contacted Belman Flexibles India with the requirement of a new Expansion Joint to be installed in the Air-Cooled Condenser (ACC).
BELMAN FLEXIBLES INDIA SOLUTION – Tee Type Pressure Balanced Expansion Joint

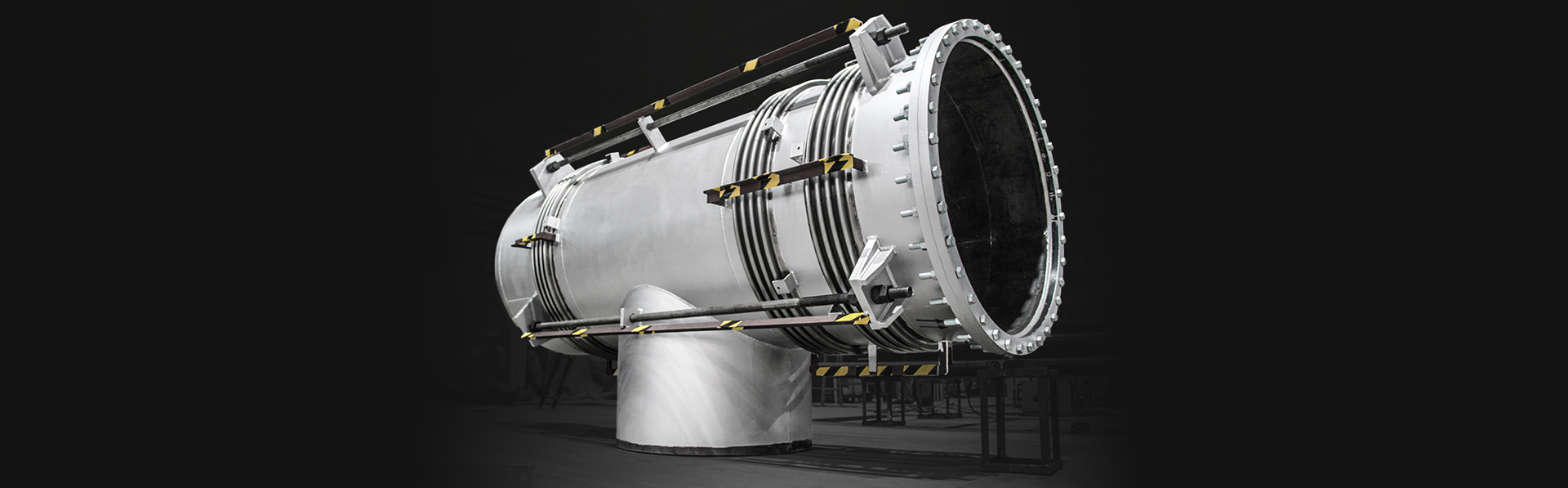

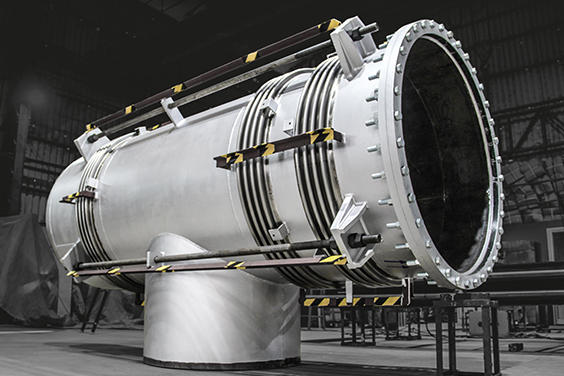

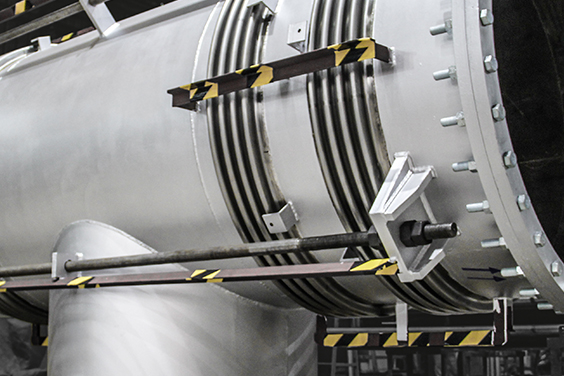

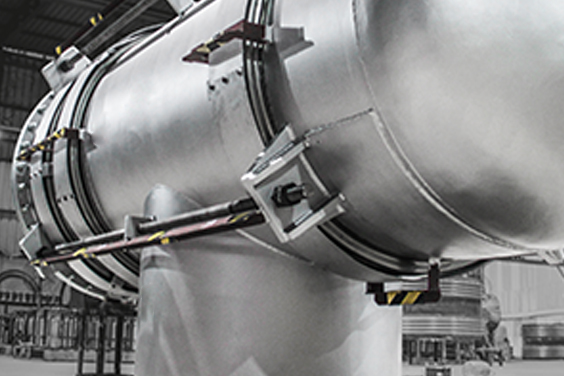

We have designed this Tee Type Pressure Balanced Expansion Joint to absorb both axial and lateral movements in combination and according to the EJMA standard. The bellows are manufactured from SS 304 and incorporated inner sleeves in order to provide an extra protection to the bellows.
Belman Flexibles India – expertise on highly customised Expansion Joints
Belman Group is an experienced manufacturer of customised Expansion Joints. at Belman India, we perform the same craftmanship for engineered special Pressure Balanced Expansion Joint solutions including this Tee Type design.
DESIGN FEATURES
Design parameters of the Pressurised Expansion Bellow during storage:
Type: Tee Type Pressure Balanced Expansion Joint • Quantity: 1 pc. • Dimensions: DN 1400 • Installation length: 4000 mm • Medium: Steam (ANP) • Design pressure: 0.5 Kg/Cm2g / Full Vacuum • Design temperature: 120°C • AX: +0/-25 mm • LA: +0/-15 mm • Bellow: SS 304 • Inner sleeve: IS 2062 E250 • Design code: EN13445
CLIENT BENEFIT
- Reliability of an Expansion Joint designed to work under the operating parameters specified
- Expert assistance from a manufacturer with International exposure, the know-how to design and manufacture Expansion Bellow solutions tailored to the specific design requirements of the piping layout for optimum absorption of the thermal movements generated by the operation
- High-quality Expansion Joint solutions at very cost-effective prices
TECHNICAL information
- Technical information on Pressure Balanced Expansion Pipe Bellows in the Expansion Joint Catalogue on
pages 359
