TIED DOUBLE BELLOW EXPANSION JOINTS
FOR A STEAM APPLICATION

Belman Flexibles India has engineered and manufactured two Tied Double Bellow Expansion Joints for installation in a Steam Application in South America.

CLIENT ISSUE

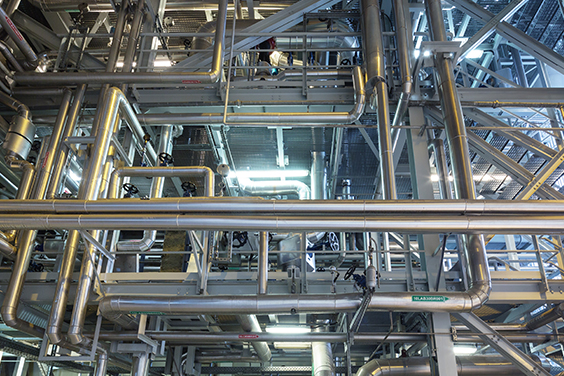

The client had a large amount of lateral offset in multiple planes in their steam piping system. To accommodate these lateral movements they were looking for some Expansion Joints and therefore turned to Belman Flexibles India.

BELMAN FLEXIBLES INDIA SOLUTION

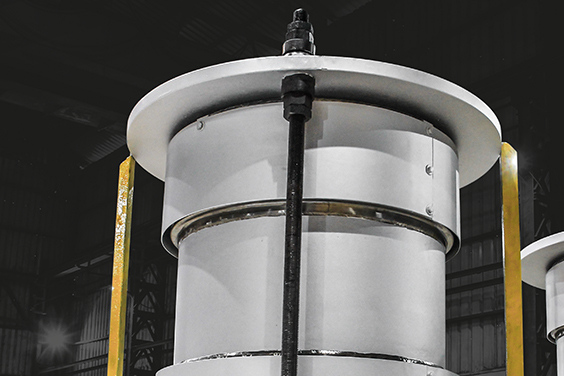

Tied Double Bellow Expansion Joint for steam piping

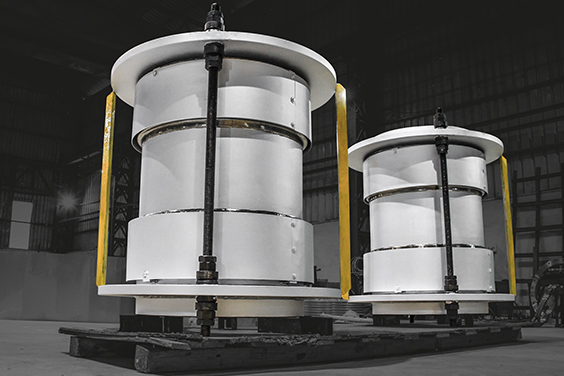

To help the client, we designed two Expansion Joints to meet the specifications as a double bellow design with tie rods/movement limiters to control the correct absorption of the lateral movement. Here the Expansion Joints are incorporated with 2 multi-convoluted bellows connected with an intermediate pipe. Additionally, each unit consists of outer covers and inner sleeve to provide more protection to the Bellows.

Belman Flexibles India’s many years of expertise in Expansion Joints for Steam applications

Throughout the years, Belman Flexibles India has supplied Expansion Joints for various applications including for steam. Having this vast experience enables us to design and manufacture sound and cost-efficient Expansion Bellows solutions, irrespective of the complexity of the application. At Belman Flexibles India, we deliver the same global expertise with a local presence, while locating closer to our customers, ensuring faster response times and a deeper understanding of the clients needs. Our Engineered Expansion Joint solutions helps clients to avoid premature failure and ensure safe operation.
