Case story

REFRACTORY LINED BELLOWS FOR
STEEL PLANT

Steel plant

Germany

AD2000

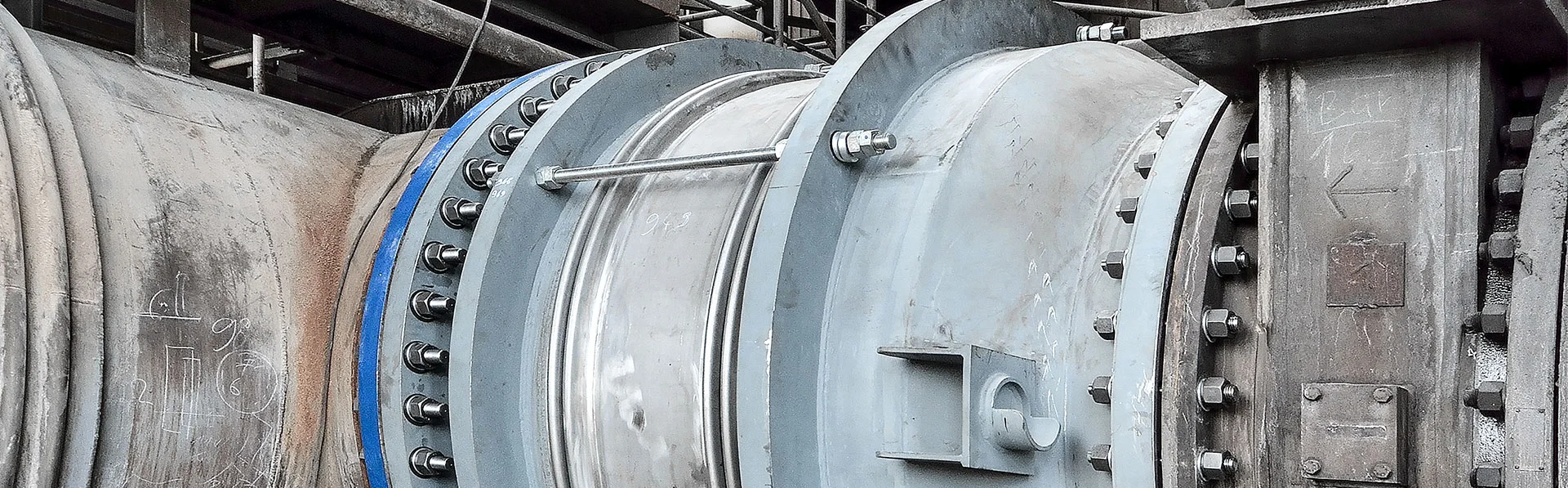

4 pcs. customised Bellows DN 2200 were installed in the hot blast pipeline near the blast furnace of a German steel plant.



The Bellows design
The Bellows are designed and manufactured according to AD 2000 Merkblatt HP 0 as per the customer’s requirement. The Bellows are tailor-made for the application, ensuring they fit perfectly in the installation and meet the operating conditions and requirements. Further, they are specially designed to absorb several types of movement simultaneously including; axial, lateral and angular movements. This design also incorporates a double bellow construction with tie rods to assist further the controlled absorption of the movements in the pipeline. The conical end at the top of the Expansion Joint is due to the different sizes of the connecting pipes on each side of the Bellows.



Refractory Lined Bellows
The Bellows are refractory lined due to insulation requirements. The pipeline on the installation point of the steel plant is refractory lined in order to reduce the temperature. Without protective insulation from the high temperature medium, the pipes and installed components would have to be produced from high alloy steel – which would result in a large material cost increase. For this reason, many such pipelines are made from regular stainless steels and then refractory lined. Due to the high temperature of the medium and despite the presence of insulating materials, the inner sleeve is made from the heat resistant austenitic steel 1.4828, while the bellow material is made from 1.4571. The refractory lining was carried out by industry experts and specified by the client.



Specialised in Bellows for steel plants
Belman has vast experience with design and manufacture of Expansion Joints for steel plants. Since 1994 we have regularly supplied all kinds of customised Bellows for steel plants all over the world. The supply of the heaviest ever made Expansion Joint by Belman (40 tonnes) is amongst the many successful steel plant projects undertaken.

DESIGN FEATURES

The Refractory Lined Bellows for steel plant have the following design parameters:
Dimension: DN 2200 • Installation length: 1888 mm • Medium: • Design pressure: 3,3 barg • Design temperature: 300°C • AX: +0/-30 mm • LA: +/-2 mm • AN: +/-1° • Bellow: 1.4571 • Welding ends: 1.4571 • Inner sleeves: 1.4828 • Design code: AD 2000

CLIENT BENEFIT

  • Suitable solution for the application
  • Reduced temperature on the outside of the pipe due to the design
  • Material cost savings due to the refractory lining, as pipes and components will not need to be produced from high alloyed steel
  • Controlled absorption of movements in the pipeline
  • Benefit from the considerable know-how of an experienced manufacturer
RELATED INFORMATION

TECHNICAL information

  • Technical information on insulation in Expansion Joint Catalogue
    page 413
  • Technical information on Refractory Lined Bellows in Expansion Joint Catalogue
    page 371
