Case story

EXPANSION JOINTS FOR HYDROGEN LIQUEFACTION PLANT

Hydrogen Liquefaction Plant

East Asia

EJMA

These Expansion Joints for Hydrogen are manufactured and designed for a project of a Hydrogen Liquefaction Plant within Hydro Energy in East Asia.



Belman solution

This project was exiting and challenging. Belman provided technical consultancy in order to help the client keeping cost-effective prices while assuring the engineering requirements were meet. The solution for the project was 38 Expansion Joints made as expansion pass-through for valves including 1”, 1” 1/2 & 2” and 3”.



Testing
As this was for hydrogen Belman performed following tests for this project,
–     Tightness test
–     Pressure test
–     VT – visual test
–     PT – Penetrant test

DESIGN FEATURES

Design parameters of the Hydrogen Expansion Joints for the Hydrogen Liquefaction Plant are:

Dimension: DN 150 • Length: 75 mm • Medium: • Design temperature: 254°C • Design pressure: -1/+1 barG • AX: +0,1/-0,1 mm • Bellows: 1.4404 (AISI 316L) • Flanges: 1.4404 (AISI 316L) • Design code: EJMA

CLIENT BENEFIT

  • Highly customised Expansion Joints to the needs of the client
  • On-time delivery
  • Expansion Joint design is made with ensure smooth and safe operation
  • The correct Expansion Joint solution for the application
  • Benefit from the considerable know-how of an experienced manufacturer

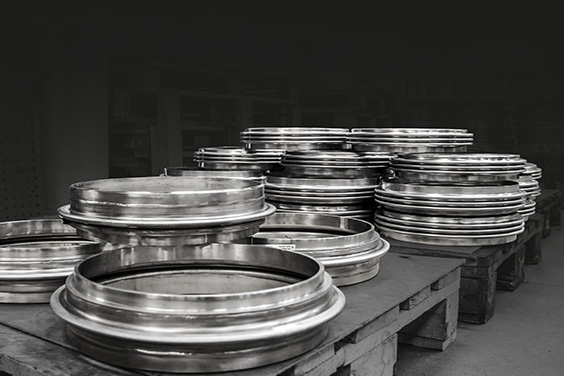

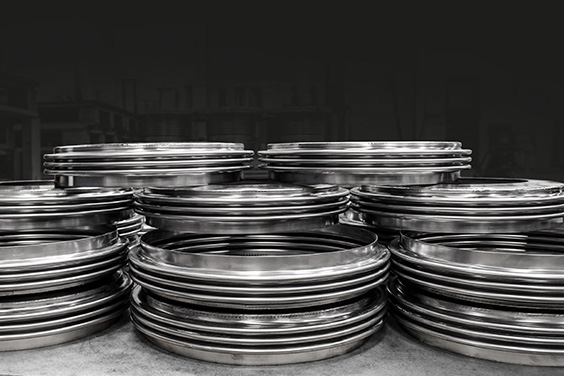

Bellows for hydrogen liquefaction plant
