Case story

TANK FARM BELLOWS AS FLEXIBLE SOLUTION

Oil tank farm

The Netherlands

EN 13445

A Dutch refinery wanted to reduce unwanted spills and sought a more reliable, flexible connection between their storage tanks and manifolds. An innovative Expansion Joint that is extending service life and reducing maintenance costs was the solution.



Current situation

The refinery was using VJ couplings as the flexible connection between the storage tanks and the manifolds. As the seal of the VJ couplings has a rubber ring, which is compressed by longbolts, regular maintenance had to be carried out in order to prevent leakages These couplings demanded a considerable amount of attention from the maintenance crew, particularly in the warm summer months, with the constant risk of spills.



New situation – The solution

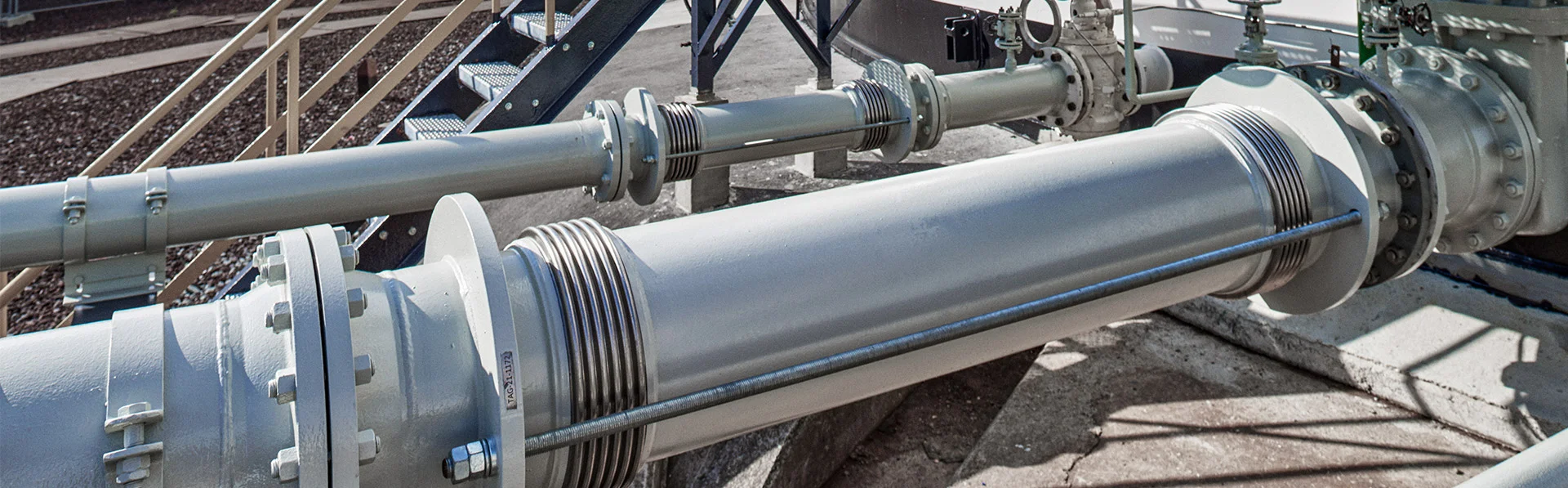

The solution proposed to the refinery was the use of Tank Farm Bellows. This type of expansion joints look like standard lateral expansion joints, but are specifically designed for tank farm applications. These particular Tank Farm Bellows provided the refinery with a reliable, flexible connection that could absorb the tank settlements with a minimal risk of unwanted spills during the entire service life time of the storage tank. The integrated inner sleeves design ensures that there is no disturbance to the flow of the medium which could negatively influence the time needed to fill or empty the storage tank.
The bellows were made from Incoloy which gives a superb resistance against corrosion. The other expansion joint components are made from A105 and A106 Gr.B and coated with a special multi-layer coating system as per the customers’ requirements. The Tank Farm Bellows complied with PED/CE and were delivered with full documentation, user guide and fabrication book. The expansion joints could be installed as soon as they arrived on site as no further NDE tests were required.



Experienced

Our long reference list of customised expansion joints designed and manufactured for oil refineries and terminals is supported by all necessary approvals and accreditations. We are familiar with prevailing design codes such as PED, NORSOK, ASME, EJMA etc.

DESIGN FEATURES

The Tank Farm Bellows have various design and have the following design parameters:
Dimension: DN 200 & DN 400 • Installation length: 1300 mm & 2600 mm • Medium: Kero/Jet A1 • Design pressure: 15,5 barg • Design temperature: -10/+150°C • LA: +0/-100 mm • AN: +0/-1,5° •Bellow: 2.4858 • Flanges: A105 • Welding ends and Intermediate pipe: A106 Gr.B • Design code: EN 13445

CLIENT BENEFIT

  • A reliable alternative solution for VJ couplings that is significantly reducing the risk of unwanted spills
  • Extended service life with less maintenance costs
  • Guaranteed a 100% clear bore and no disturbance of flow of medium so no time loss during filling and emtying the storage tank
